Inkjet Media

Broad Tack is bubble free inkjet media superior in letting air go.

Broad Tack is registered trade mark of Daiwakaseishoji Co.,Ltd.

【List of typical Broad Tack】

Application	Grade	Base material	Color (Adhesive)	Thickness (μ)	size	Adhesion force (N/25mm)
Water-Based Ink	U-IJGS	PP Synthetic Paper	Gray	115	915mm ×10m ×20m ×30m	3.0
Water-Based Ink	K-IJGS	PP Synthetic Paper	Gray	115	1270mm ×10m ×20m ×30m	3.0
Solvent-Based Ink	PVCG	PVC	Gray	110	1370mm ×10m ×20m ×30m ×50m	1.0
	PVCG-2			110		1.5
	PVCG-M			100		1.0
	PVCG-M2			100		3.0
	PVCG-E			100		4.0
	PVCG-E2			100		4.0
UV Ink	PKS-UV	PET	Transparency	100	1060mm ×50m	3.0
※Transparency adhesive is produced on order.
Silver Halide Type	DF (both sids sheet)	PET	Transparency	80	1000mm×30M	A side:3.0 B side:0.5

PP:Polypropylene PVC:Plyvinyl chloride PET:Polyethylene telephthalate

【Superiority of Broad Tack】

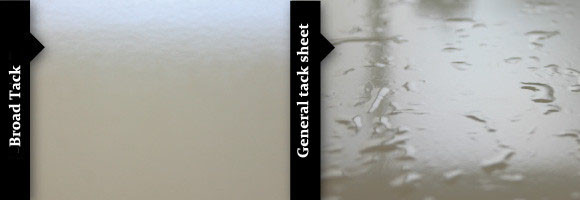

【Peel off test of Broad Tack】

Easy to peel off without any dirt on the surface!!

In case of general tack sheet, the pasts remains.

But Broad Tack doesn't remain.

The working efficiency improves at the time of repapering.

【Propriety of Printer】

The adaptability with the INKJET PRINTER is as followings.

(However, it is data based on the operation of our customer, and not the guaranteed one)

	Model	Y IJGS	U IJGS	PVCG
Water-based	HP Z 5500	◯	◯
	HP Z 6100	◯	◯
	Roland FJ-540	◯	◯
	EPSON PX-9500	◯	◯
	CANON W-8500	◯	◯
	Mimaki JV4	◯
	HP DJL25500	◯	◯	◯
Solvent-based	Mimaki JV5-130S			◯
	Mimaki JV33			◯
	Roland XC-540			◯

Please be sure to read before using

Please be careful not to touch printing surface by bare hand.
Appropriate setting up is required in outputting to inkjet printer. Please read mannual of the printer.
When using for outdoor purpose, please laminate printed media by over-laminate film after checking the property of the over-laminate film.
In case of having difficulty in peeling off after use, please add heat by steam, hot-air generator and so on. Then you can peel off smoothly.
Please kindly note that technical data, recommendation which we provide is test result on the basis of a certain standard, but not guaranteed value.
Please refrain from sticking on the surface of soft vinyl. There might be problem in peeling off.
Please do not stick on easy to peel off painted surface, or paint migh be peeled off and the color might change.
We fully pay attention to quality, but in case any problem obriously caused by our product occurs, we will replace with new product.
